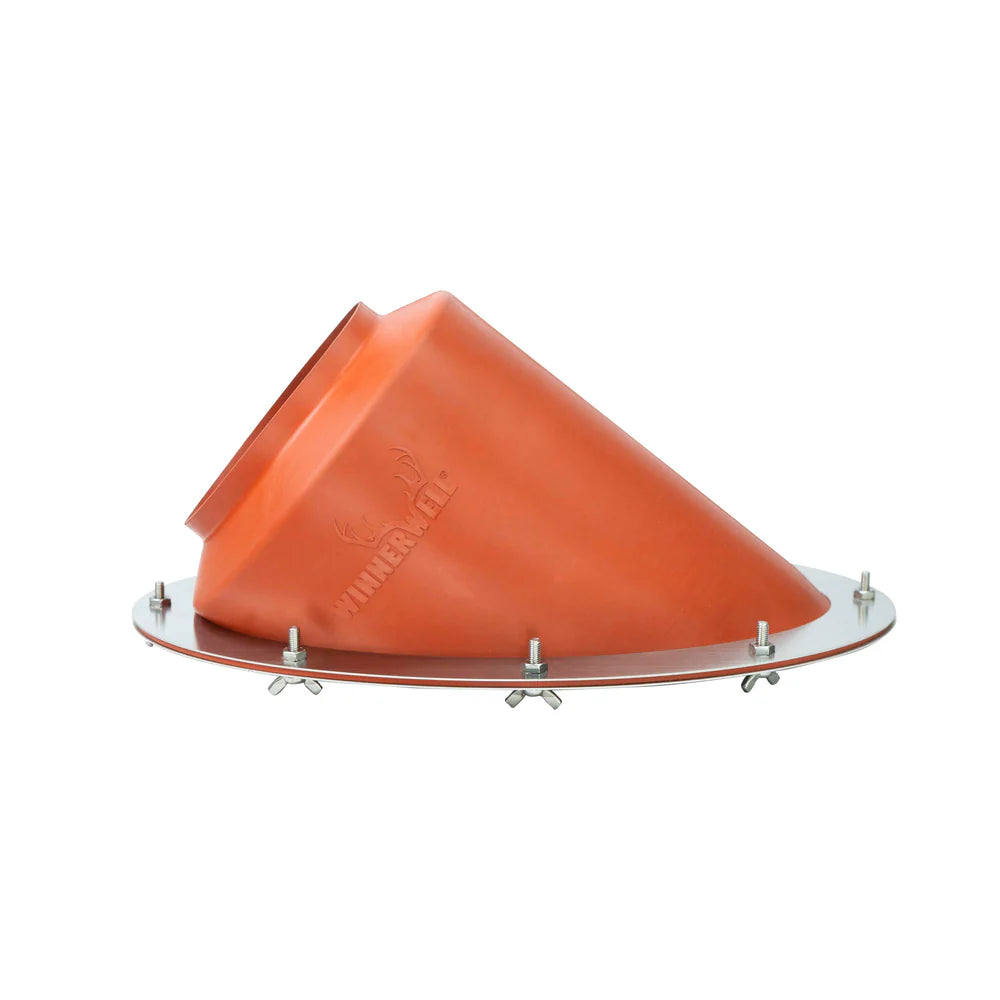

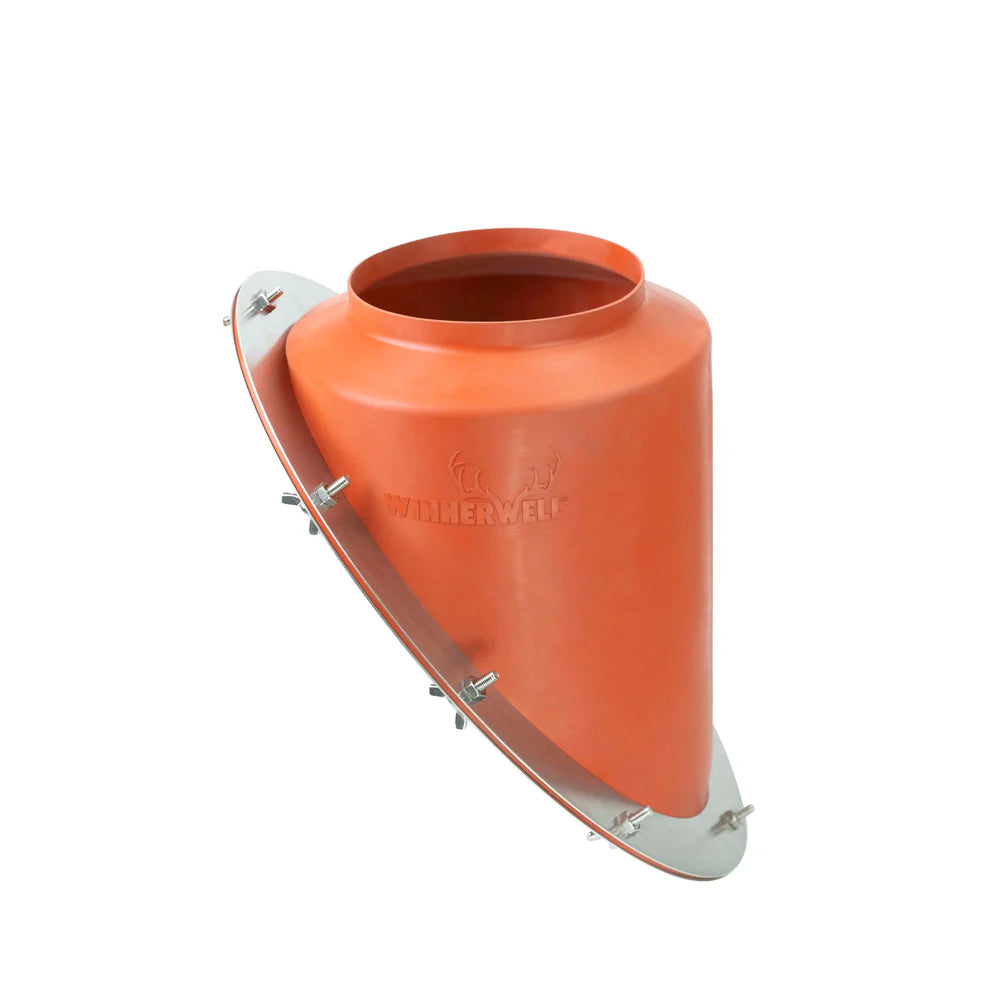

Winnerwell® Angled Flashing Kit compatible with SKU 910446 / SKU 910507
Tailored for Winnerwell® Teepee Tents, the Winnerwell® Angled Flashing Kit is designed to fit seamlessly with the stove jack on angled tent surfaces. Compatible with the Winnerwell® Triple-wall Heat Protector Chimney 3.5" and Winnerwell® Triple-wall Heat Protector Chimney for External Air M-sized Stove, it provides a secure, weather-tight seal, making it an essential accessory for safe and efficient stove use in outdoor camping setups.
WARNING:
- The Angled Flashing Kit must only be used with the Triple-wall Heat Protector Chimney 3.5", Winnerwell® Triple-wall Heat Protector Chimney for External Air M-sized Stove. Direct installation on the stove pipe risks melting the silicone.
- The upper portion of the Heat Protector Chimney reaches high temperatures. The silicone collar must not be positioned near or above the upper cooling holes.
● Designed to perfectly match angled stove jack openings, especially on Winnerwell® Teepee Tents
● Silicone collar resists temperatures up to 240°C / 464°F, secured with AISI304 stainless steel rings
● Keeps your tent protected from rain, wind, and debris at the pipe exit
● Ideal accessory for anyone using a stove in a tent setup—especially where chimney angles are involved
Winnerwell® Angled Flashing Kit compatible with SKU 910446 / SKU 910507
SKU: 910540
Material: Silicone collar + AISI304 Stainless Steel rings
Top Opening Diameter: 142mm / 5.6in
Outer Dimension: 399(L)mm×273(W)mm / 15.7(L)in×10.8(W)in
Fixing Hole Dimension: 222(L)mm×207(W)mm / 8.7(L)in×8.2(W)in
Net Weight: 1.09kg / 2.4lbs
INSTALATION

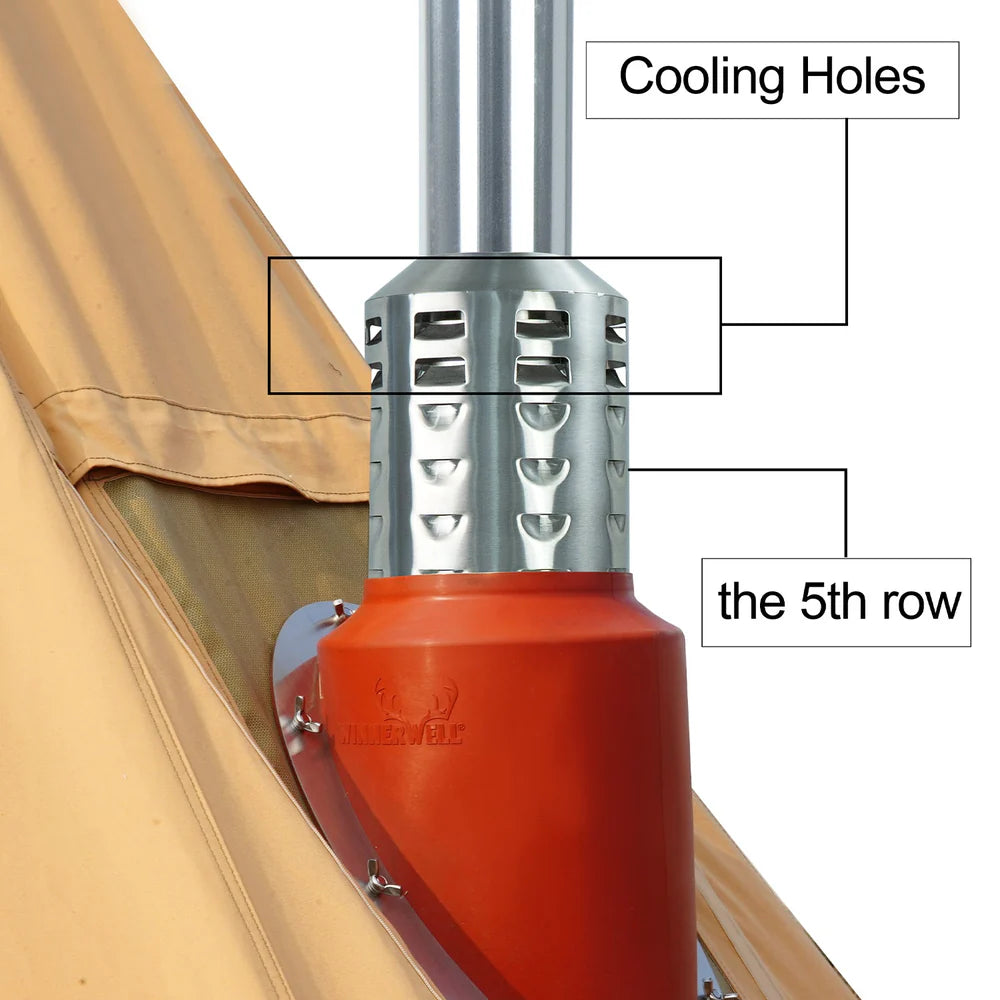

When using the Winnerwell® Angled Flashing Kit, ensure that the silicone collar remains below the 5th row of holes at its lowest point relative to the Winnerwell® Heat Protector Chimney. To achieve the correct positioning, we recommend purchasing Winnerwell® Short Pipes separately for precise height adjustments.
WARNING: The upper portion of the Heat Protector Chimney reaches high temperatures. The silicone collar must not be positioned near or above the upper cooling holes.
The Angled Flashing Kit must only be used with the Triple-wall Heat Protector Chimney 3.5", Winnerwell® Triple-wall Heat Protector Chimney for External Air M-sized Stove. Direct installation on the stove pipe risks melting the silicone.
